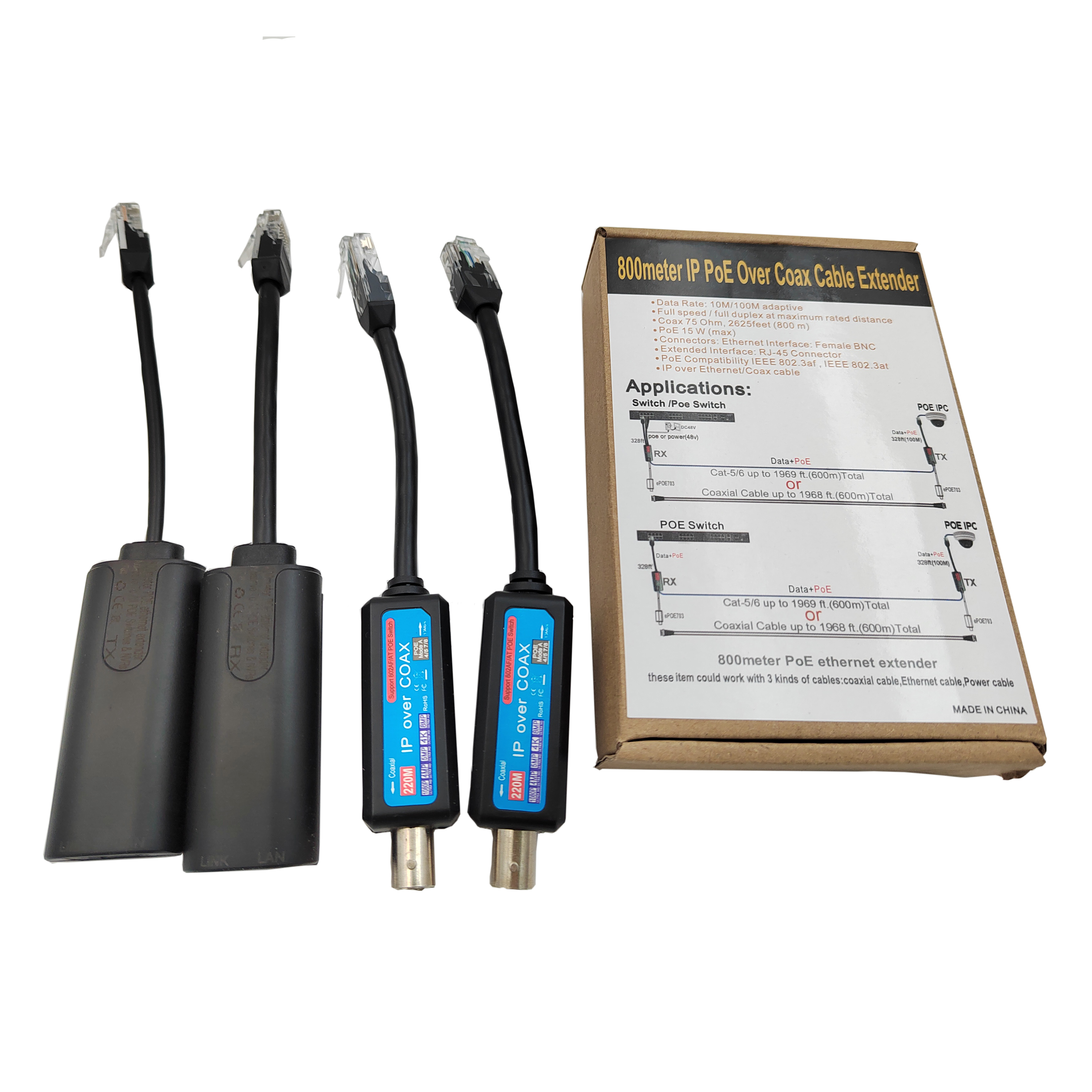

800 meter PoE ethernet extender
Item: ePoE1703+epoe703
•Applications
•Retrofit analog CCTV installations into Digital systems.
•Extending Networks in industrial environment.
•CCTV System for Casinos, Airports, School Campuses
Ethernet over Coax Network extender brings new performance standards to the growing need for high speed transmission of full bandwidth Ethernet and PoE over extended distances of coaxial cables. Its unique Symmetric Bandwidth assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss . Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no informa- tion loss.
Pass Through PoE eliminates the need for additional remote site power while allowing a single PoE source, such as a PoE network switch, to provide power to both transceivers and the camera. This feature eliminates the need for local and remote site power supplies. Type tested under NEMA-TS2 environmental standards for extended temperature operations between -10C° to +55C°, the is the perfect solution for extended distance data and power transmission for warehouses, parking lots, campuses, casinos, and many more.
ePOE702 is low power and easily fits inside most cameras housing and junction boxes. Best of all, type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error free and reliable operations.
Installation cost savings, proven performance, and major camera brand compatibility all go into making EPOE1703 your best choice for extended distance data and power transmission.
Technical Specification
Electrical
Data Rate: 10M/100M adaptive
Full speed / full duplex at maximum rated distance
Coax 75 Ohm, 2625feet (800 m)
PoE 15 W (max)
Standard Ethernet: Traffic, Link Extended Ethernet: Traffic, 100BaseT
Connectors: Ethernet Interface: Female BNC
Extended Interface: RJ-45 Connector
RFC 2544 TCP/IP Packet Transmission
PoE Compatibility IEEE 802.3af , IEEE 802.3at
IP over Ethernet/Coax cable
Environmental
Humidity0 to 95%,
TemperatureOperating: -10°C to +55°C
Mechanical
Dimensions45*19.5*18.5MM(BNC connector & cable excluded)
Weight45 g
Material:ABS
Application Diagrams:
1.only for the POE systems connected way as below picture :
2.Supporting Ethernet over coax POE Ip system with existing coaxial cable connected way as below picture:
Attention , second diagram connected way must working with EPOE703 which can transmit Data+ PoE
