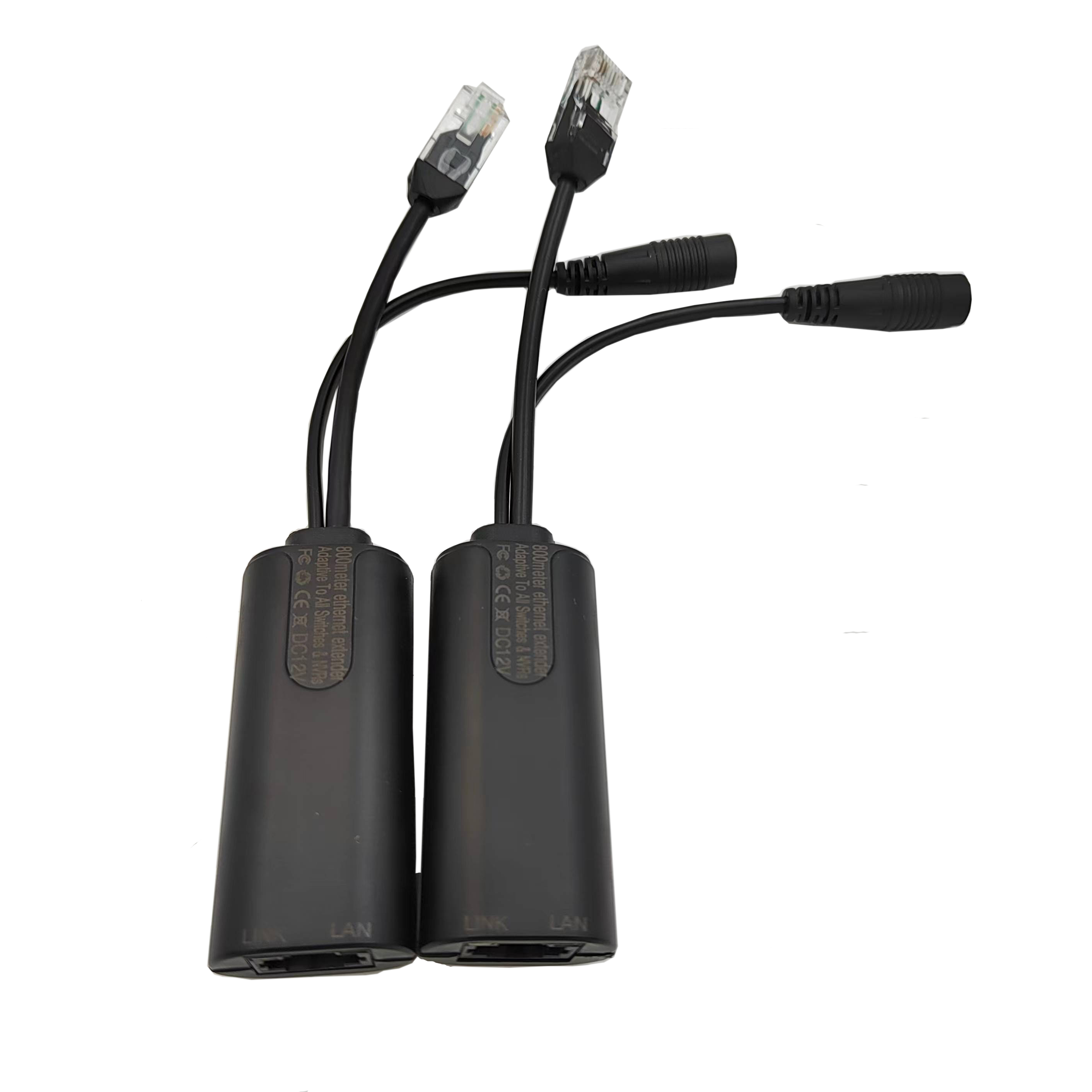

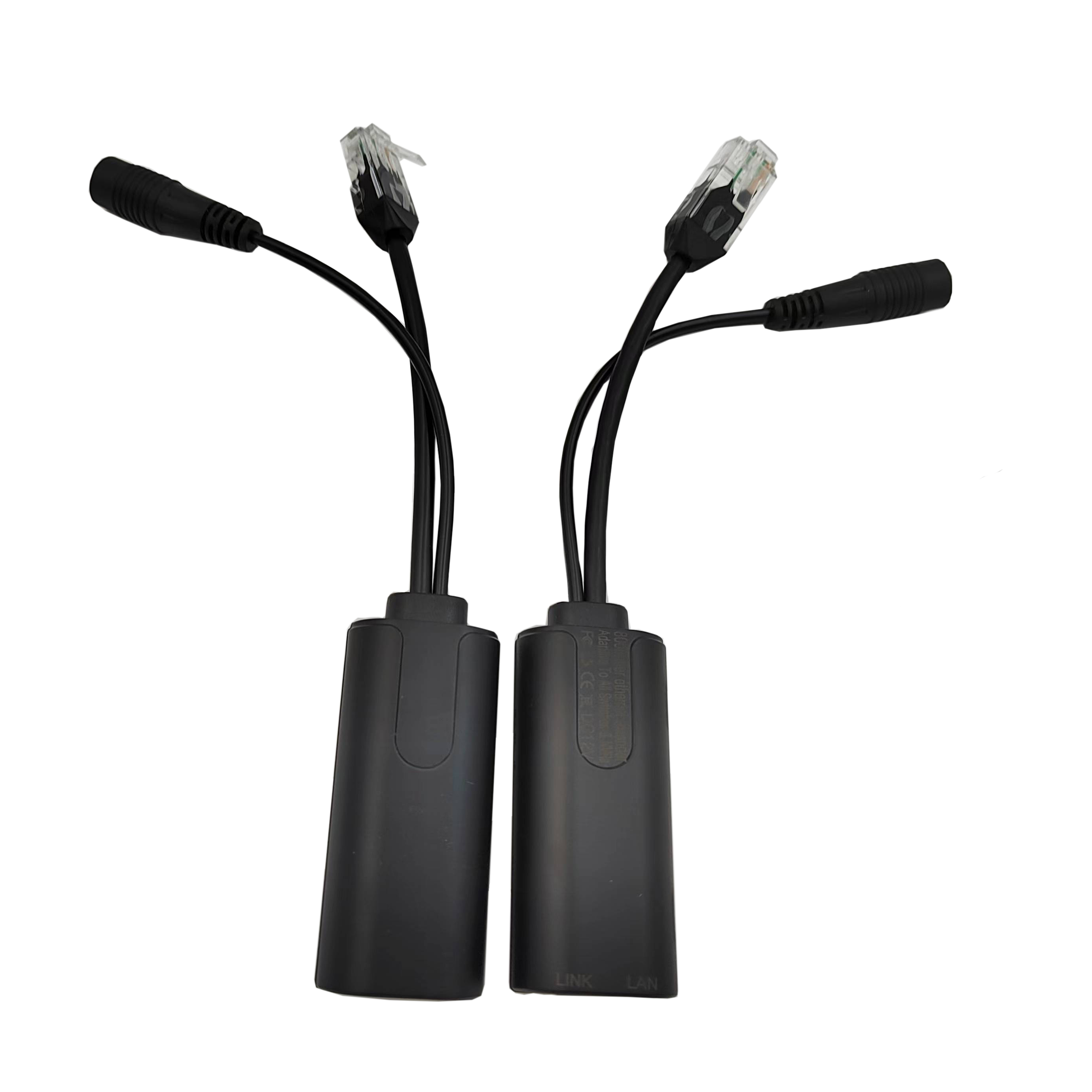

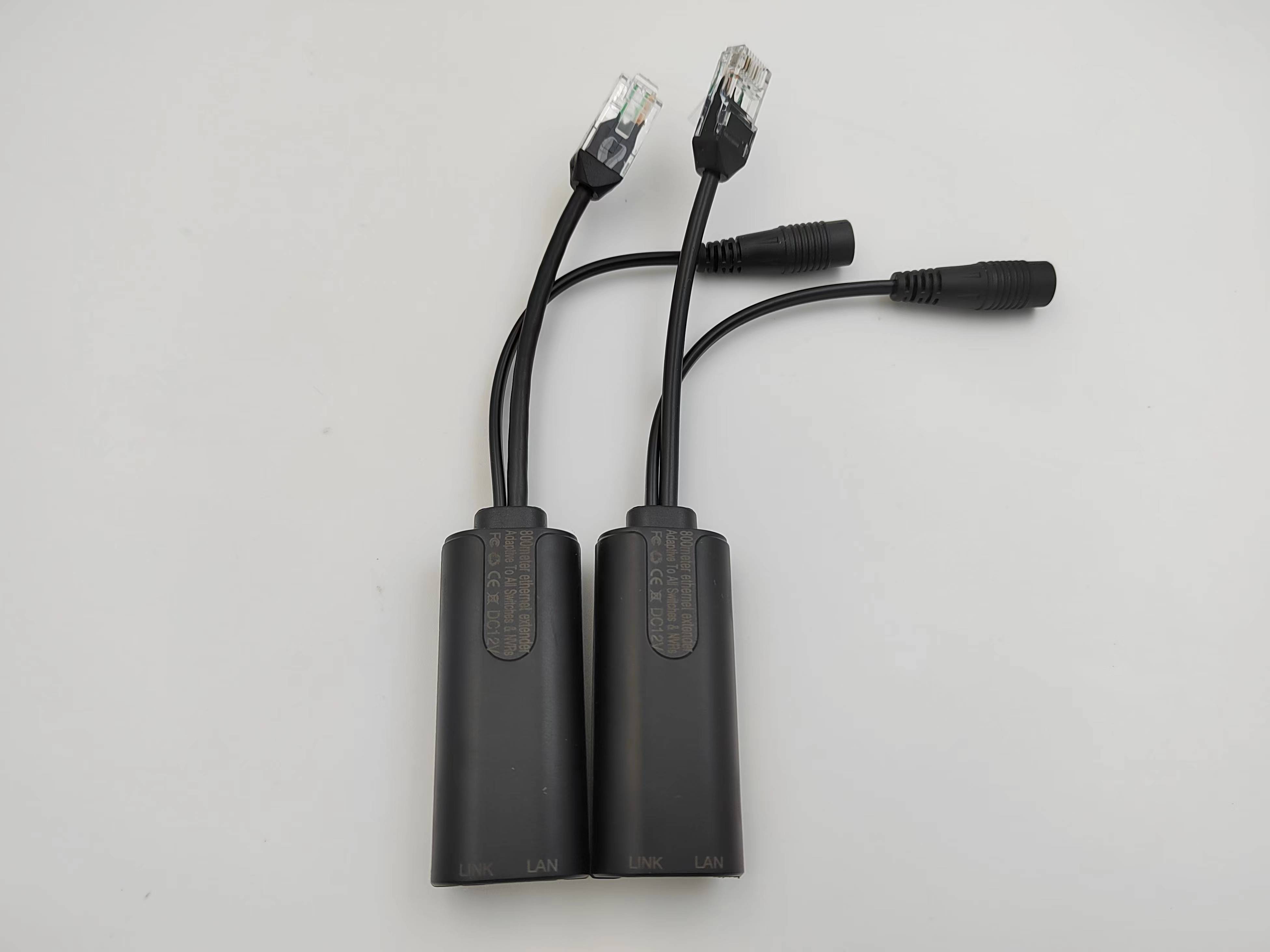

Item: ePoE1702

Features

•Converts Ethernet UTP to transmit network data and PoE over standard coax cable.

•Extends Ethernet beyond 328 feet (100 m) limitation up to 3280 feet (800m) over Coaxial cables.

•This item could work with 3 kinds of cables:coaxial cable,Ethernet cable,Power cable

•Saves additional equipment costs and reduces installation time.

•Certified High data rate, ideal for high bandwidth requirements of Mega-pixel cameras, multiple IP cameras systems and cameras requiring Jumbo Frame transmission.

•Symmetric Bandwidth provides consistent upload and download with Virtual Zero Packet Loss over total specified distance.

•Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards.

•Built in transceiver cable connectivity tester.

•Type tested for -10°C to +55°C temperature range under NEMA-TS2 testing standards.

•Data rate selectable to for maximum bandwidth utilization.

•China designed and manufactured.

•Limited Life Time Warranty.

•Applications

•Retrofit analog CCTV installations into Digital systems.

•Extending Networks in industrial environment.

•CCTV System for Casinos, Airports, School Campuses

Ethernet over Coax Network extender brings new performance standards to the growing need for high speed transmission of full bandwidth Ethernet and ip over coax extended distances of coaxial cables. Its unique Symmetric Bandwidth  assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss . Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss.

Environmental

Humidity0 to 95%,

TemperatureOperating: -10°C to +55°C

Mechanical

Dimensions45*19.5*18.5MM(BNC connector & cable excluded)

Weight45 g

Material:ABS

Application Diagrams：
