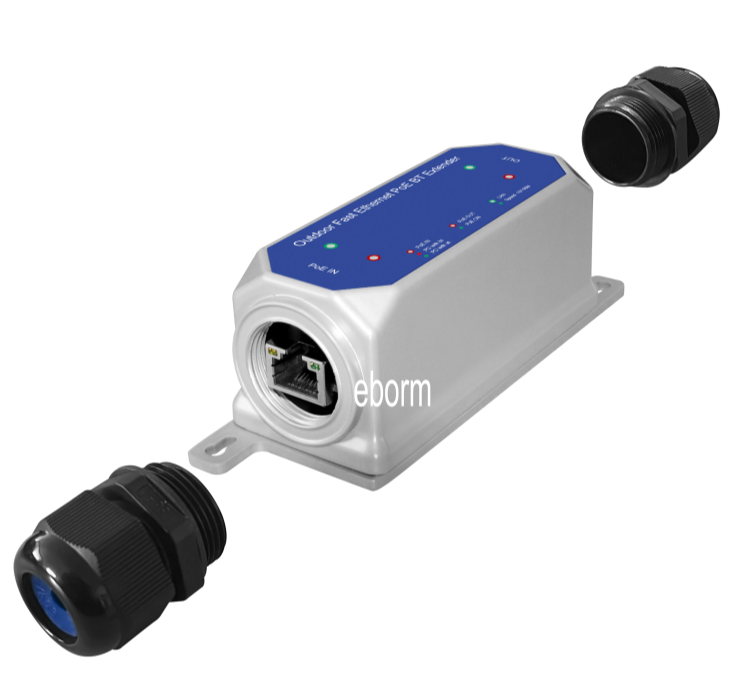

Model | EX101G |
Product name | Gigabit IP67 outdoor waterproof extender |
material | Aluminum die-casting body Nylon waterproof joint |
Waterproof grade | IP67 |
Wire diameter | Support network cables with a Φ of 4-8mm |
Fixed Port | 1*LD*10/100/1000Base-TX in 1*10/100/1000Base-TX out |
PoE in | Supports IEEE802.3af/at/bt, max 120W PoE in Supports Passive DC37-57V in MAX 120W |
PoE in Pin | 12+ 45+ 36- 78- |
PoE OUT | Supports IEEE802.3af/at/bt, max 90W PoE out |
PoE OUT Pin | 12+ 45+ 36- 78- |
Bandwidth | 1Gbps |
Packet Forwarding | 0.75Mpps |
MAC | 1K |
Buffer | 768K |
POE in Transmission Distance | 100BASE-T ： Cat3,4,5 UTP(≤150 meter) 1000BASE-TX ： Cat5 or later UTP(100 meter) |
POE out Transmission Distance | 100BASE-T ： Cat3,4,5 UTP(≤150 meter) 1000BASE-TX ： Cat5 or later UTP(100 meter) |
LED Indicator | PoE in:LED witch bt or af/at POE out: on LED Port in: LAN link on LED、LAN SPEED 1G LED Port out: LAN link on LED PoEdog: on led(inbox) |
Operating Temperature/Humidity | -40～+80°C；5%～90% RH Non coagulation |
Storage Temperature/Humidity | -40～+90°C；5%～95% RH Non coagulation |
Product /Packing size（L*W*H） | 160*43*43mm 170*49*48mm |
N.W/G.W（kg） | 0.19kg/0.22kg |
Lightning Protection level | 6KV 8/20us； |
Installation | Desktop、wall installation |
Certificate | CE-EMC EN55032；CE-LVD EN62368； |
Warranty | Whole device for 1 year(Accessories not included) |
