Overview

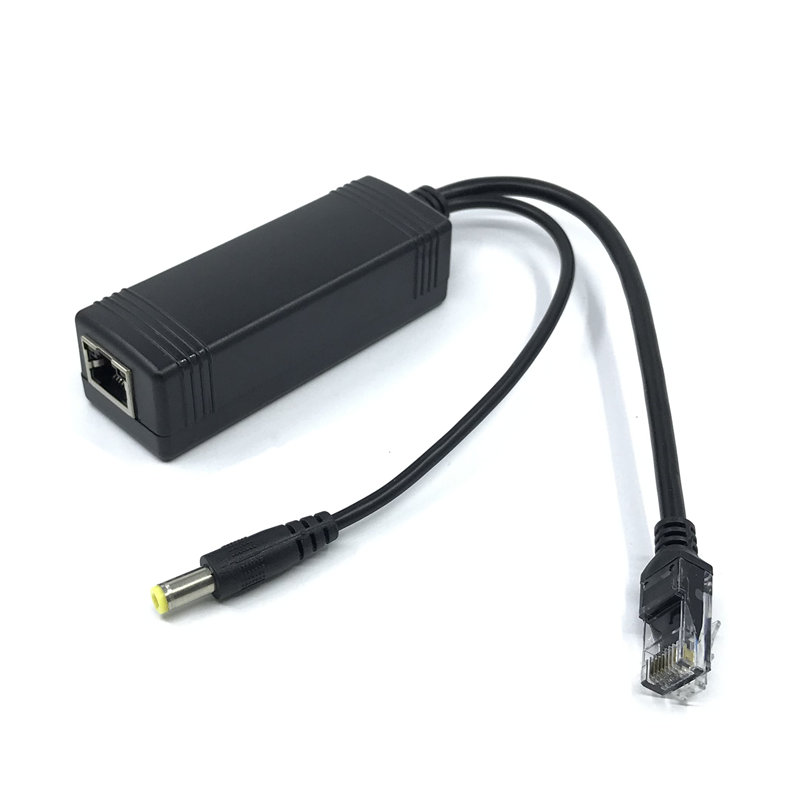

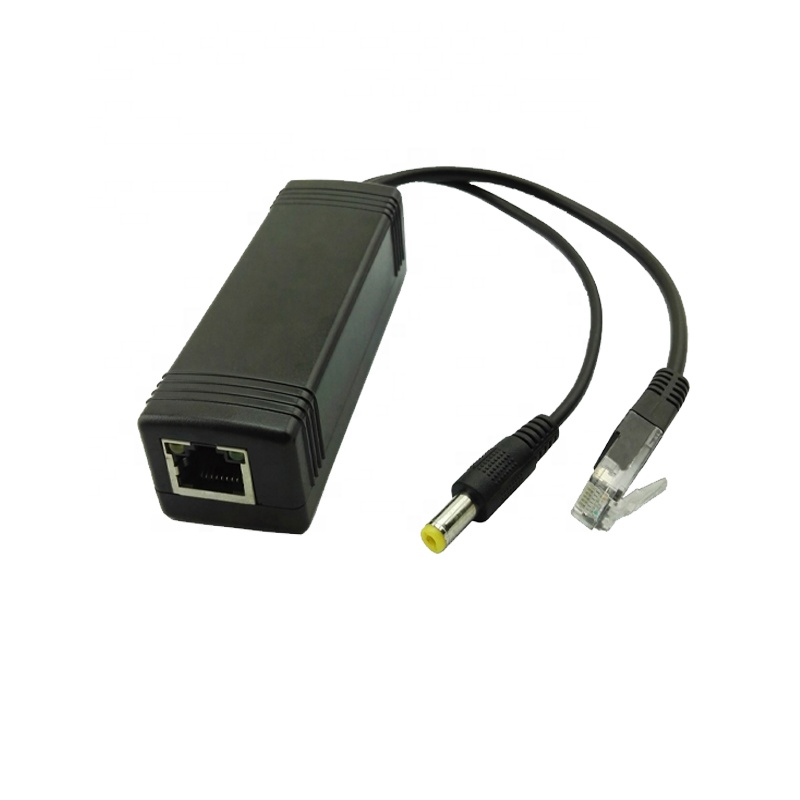

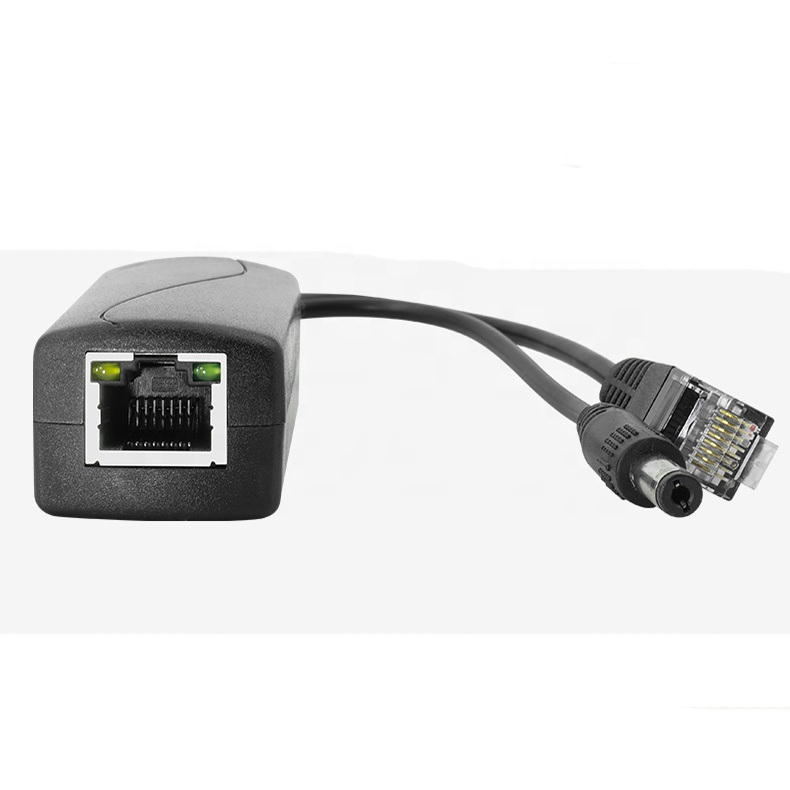

PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af/at,Provides power and data at the same time for the terminal device does not support PoE.
PoE splitter, output voltage of 12V use with the power supply equipment, It helps to expand wireless city, Security monitoring and other poe practical place, and is not restricted by layout of power line.
Features
Support international standard IEEE802.3 af/at(30W);
Support 10/100/1000Mdata transmission
PD support 38V-56V voltage transmission,Automatically detects power supply from PSE power supply module
12V power output,easy to access Poe network for non-poe terminal
Support the isolation circuit protection,can effectively protect electrical equipment.
Support the short circuit,overvoltage protection
Model | PD26G |
Transfer Rate | 10/100/1000M |
Power | Input 38-56V/600mA , Output 12V/2.5A MAX |
Standard | IEEE802.3 af/at(30W) |
TRNF | 1/2(+),3/6(-);4/5(+),7/8(-) |
Interface Type | 1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
Standard | IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af , IEEE802.3at |
LED | Yellow PoE lamp |
Environment | Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing |
Dimension | 93L * 34W *26H |
Weight | 0.08kg |
