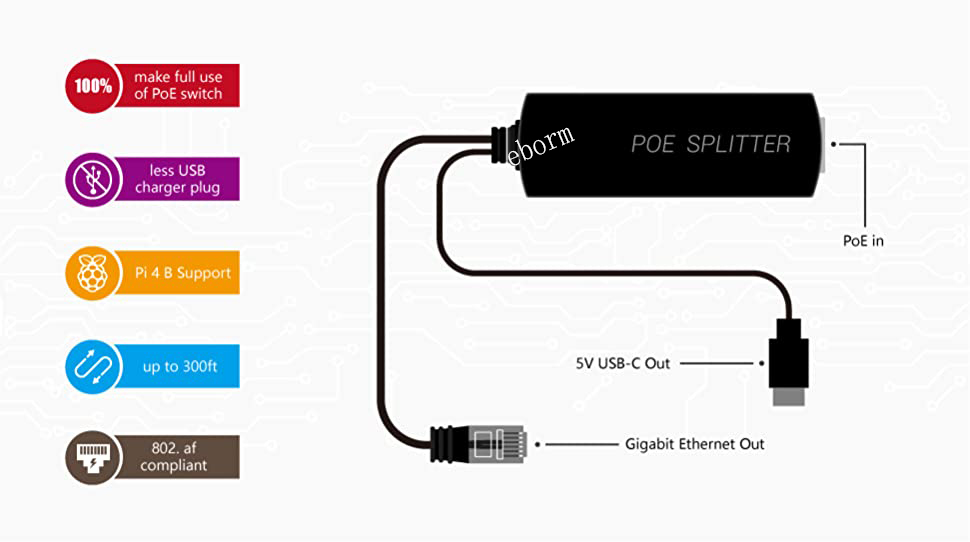

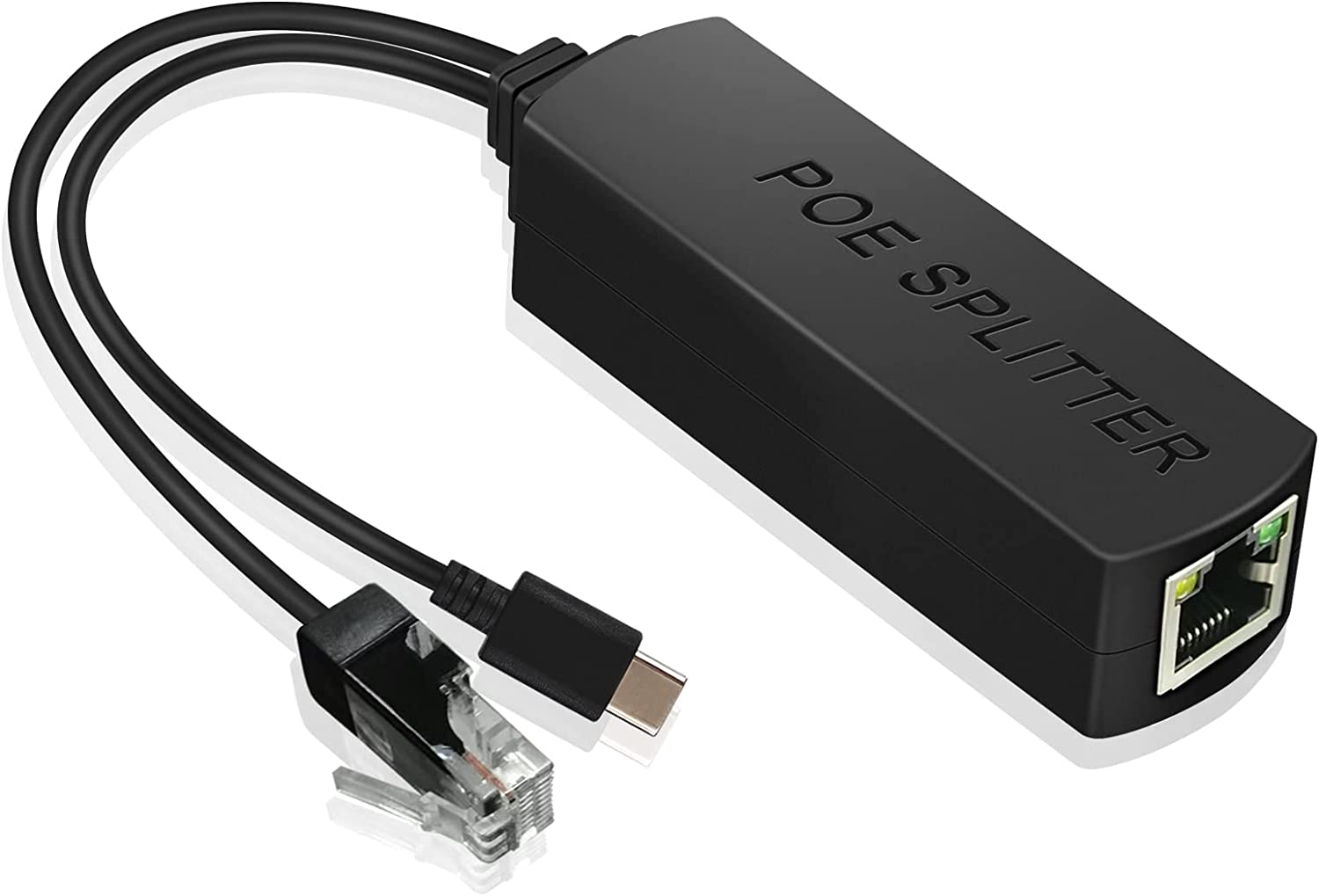

10/100/1000Mbps Power over Ethernet 48V to DC5V 2A USBC TYPE-C PoE Splitter for Raspberry Pi

Support international standard IEEE802.3 af(13W);

· POE port Support 10/100/1000Mbps data transmission

· PD support 37V-57V voltage transmission,Automatically
detects power supply from PSE power supply module

· 5V/2A power output using DC Jack  ( Type-C,Micro-USB)

· Support the isolation circuit protection,can effectively protect   electrical equipment.

· 1500V high voltage isolation

· Support the short circuit,overvoltage protection

Model	LS-POE-0520V
Transfer Rate	10/100/1000M
Power	Input 48V DC /0.35A, Output 5V/2A
Standard	IEEE802.3 af(13W)
TRNF	1/2(+),3/6(-);4/5(+),7/8(-)
Interface Type	1 Input RJ45 port, 1 output RJ45 port, 1 DC Jack output 5.5*2.1mm ( Type-C,Micro-USB connector are available)
Standard	IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af
LED	Yellow PoE lamp
Environment	Work within -20~50°,Storage within -30~60° Work within 10%~90% Non-condensing,Storage within 5%~95% Non-condensing
Dimension	812824mm
Weight	0.10kg
