Feature:
1. Comply with IEEE802.3af power over Ethernet
2. 10/100M supported
3. Extend the range of POE an additional 120 meters
4. Automatically detects and protects Poe equipments from being damaged by incorrect installation.
5. Plug-and Play no configuration required

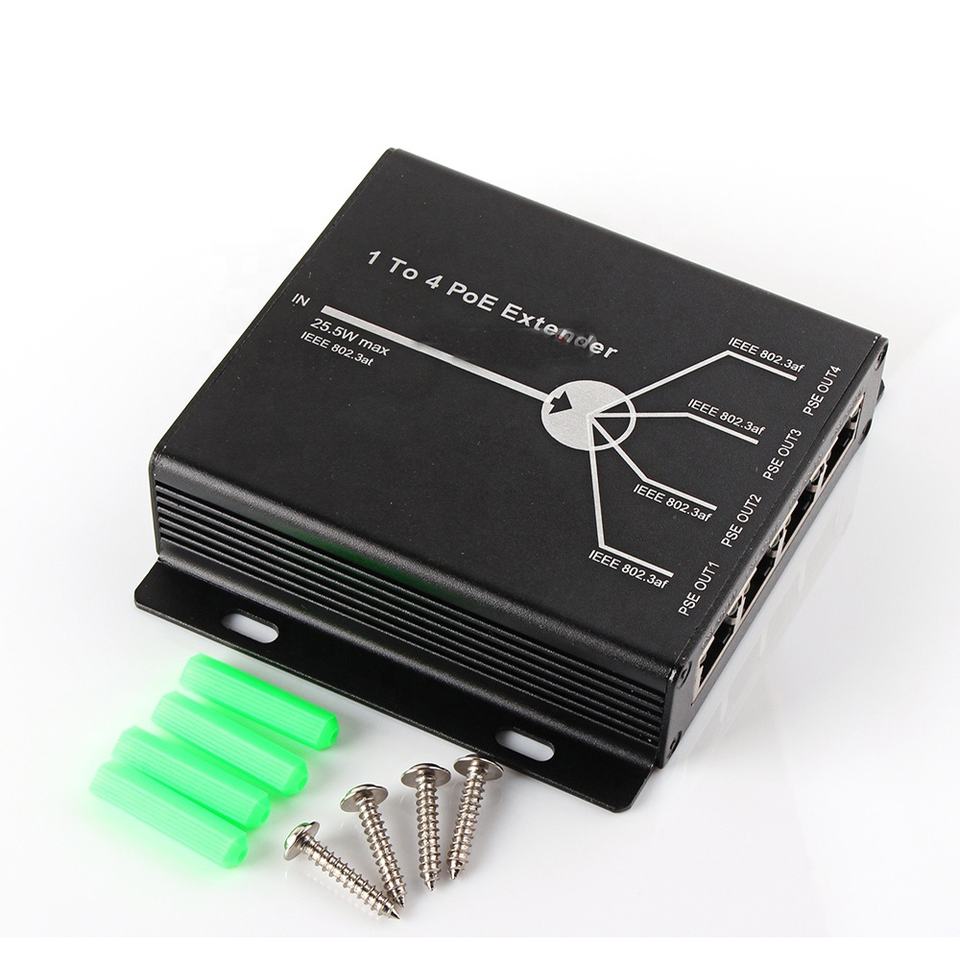

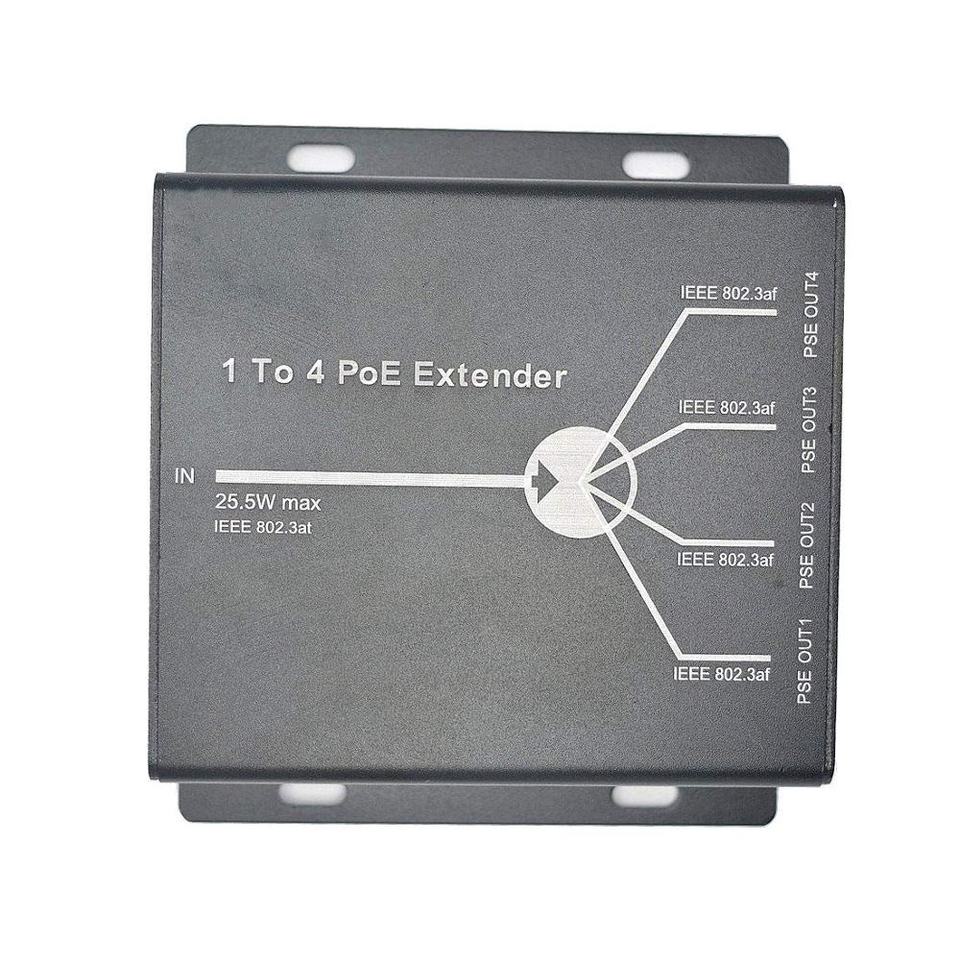

6. 4 ports POE extender can forward both Ethernet and POE power for 4 terminal equipments via cat5 UTP cable
7. 1 port POE extender can forward both Ethernet and POE power for 1 terminal equipment via cat5 UTP cable
Applicable Range
1. usd with AP, IP camera, IP telephone and the other network equipments in the situation of the lack of power line or far away from the power outlets
2. installed at hotels,schools, buildings , villages, etc.
Package contents
10/100M POE extender (1port or 4 port)
User manual
Screw set(3.5x20mm, for 4-port POE extender only)
Note:
1. Please don't place any heavy thing on the POE extender
2. to prevent the water seeping into the extender, please keep POE extender away from wet environment.
3. suggest to used POE extender indoors . when installing the extender in outdoor , please install it in a waterproof house
Power-Distance chart
For 1-port POE Extender only
Load power | Test condition | Cascade Numbers | Extension Distance |
6W | Power-in :DC56V; UTP wire Resistance ;9.38Ω/100m | 4 | 600m |
9W | 3 | 480m | |
12W | 2 | 360m |
Indicator Status
LED | Status | Color | Description |
POE in | on | orang | Extender is connected |
off | ………. | Extender is not connected | |
PSE Out | on | orange | PD is connected |
off | ……… | No PD is connected or power forwarder fails | |
LINK/ACT | on | Green | The port is connected |
blinks | Green | The port is receiving or transmission data | |
off | …… | The port is not linked successfully with device |
